Mobile Hacking Labs: Strings Challenge

Tools Used

• Frida
• Fridump
• ADB
• APKTool
• Emulator (Android x86_64, API 28)

Initial Steps and Setup

1. APK Analysis:
   • Decompiled APK using JADX-GUI.
   • Found obfuscated Java code with minimal static analysis value.
   • Identified exported activities: MainActivity and Activity2.

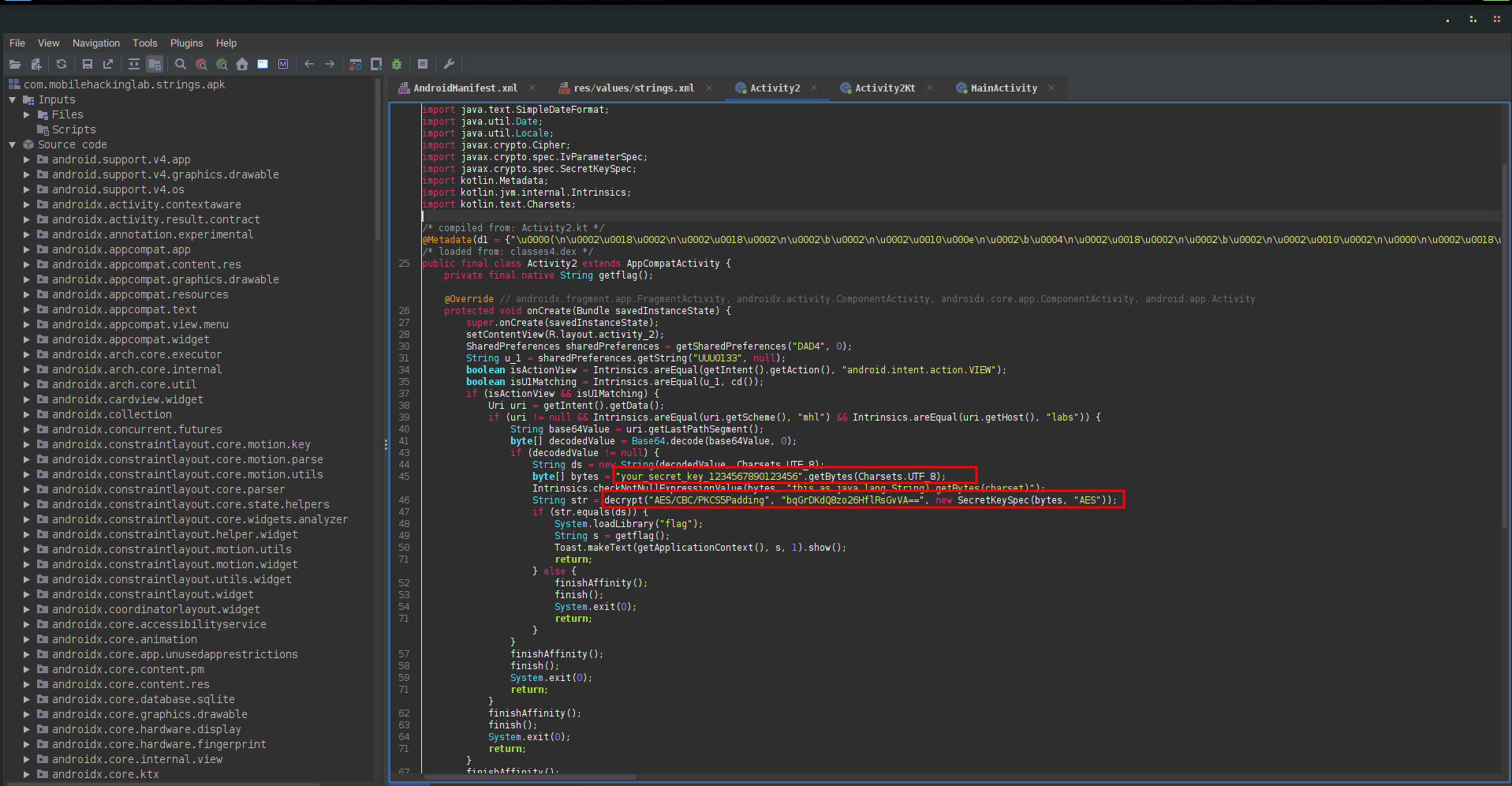

   • Hardcoded Strings:
     • Secret key: "your_secret_key_1234567890123456"
     • Encrypted message: "bqGrDKdQ8zo26HflRsGvVA=="

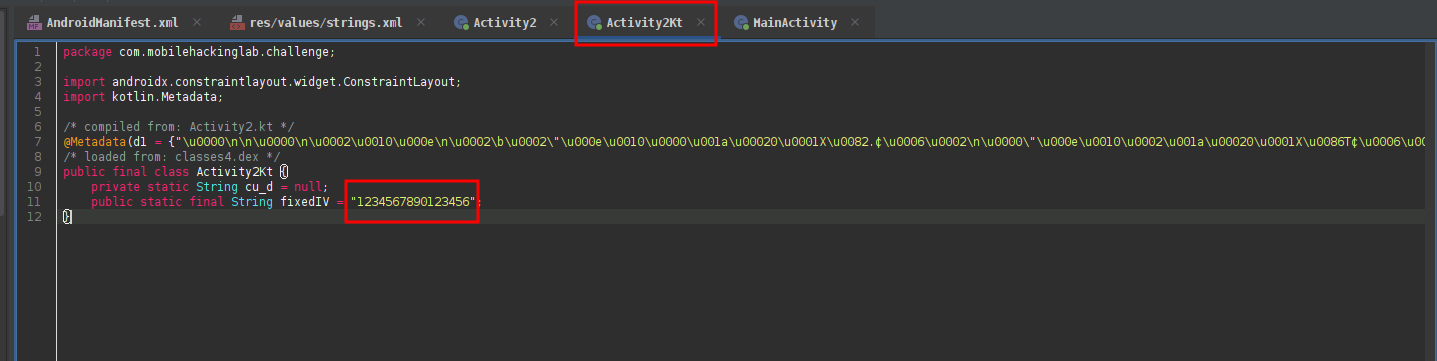

     • IV in Activity2Kt.fixedIV


   IV string is 1234567890123456

2. Cracking the Code:

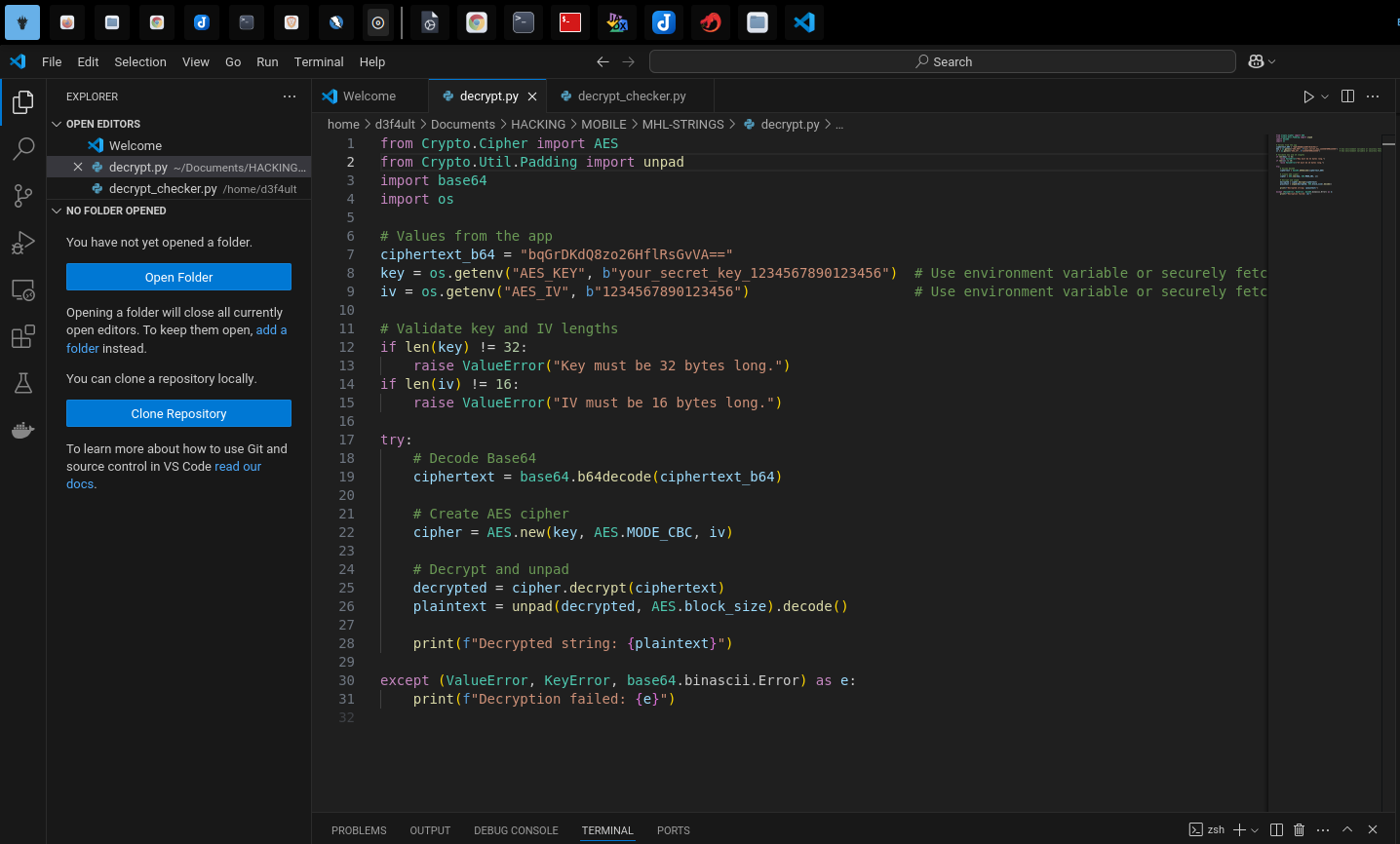

   • Wrote a Python script to decrypt the key:

   • Got the key: mhl_secret_1337

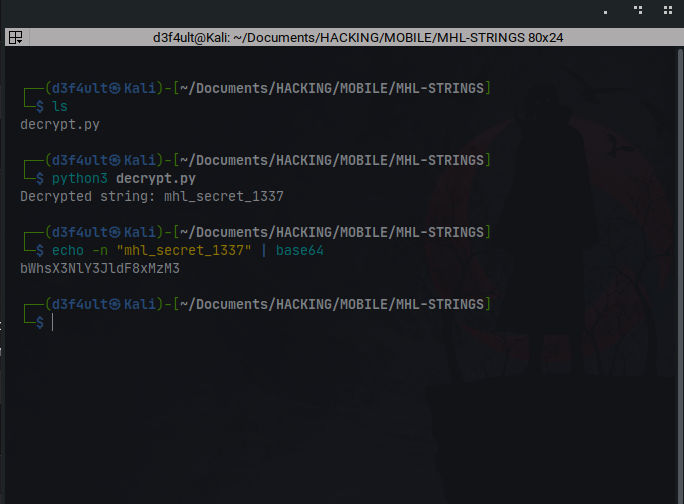

   • Encoded the secret with base64, as the code checks for a deeplink:
   • mhl://labs/bqGrDKdQ8zo26HflRsGvVA== (deeplink)

3. Frida Hooking:

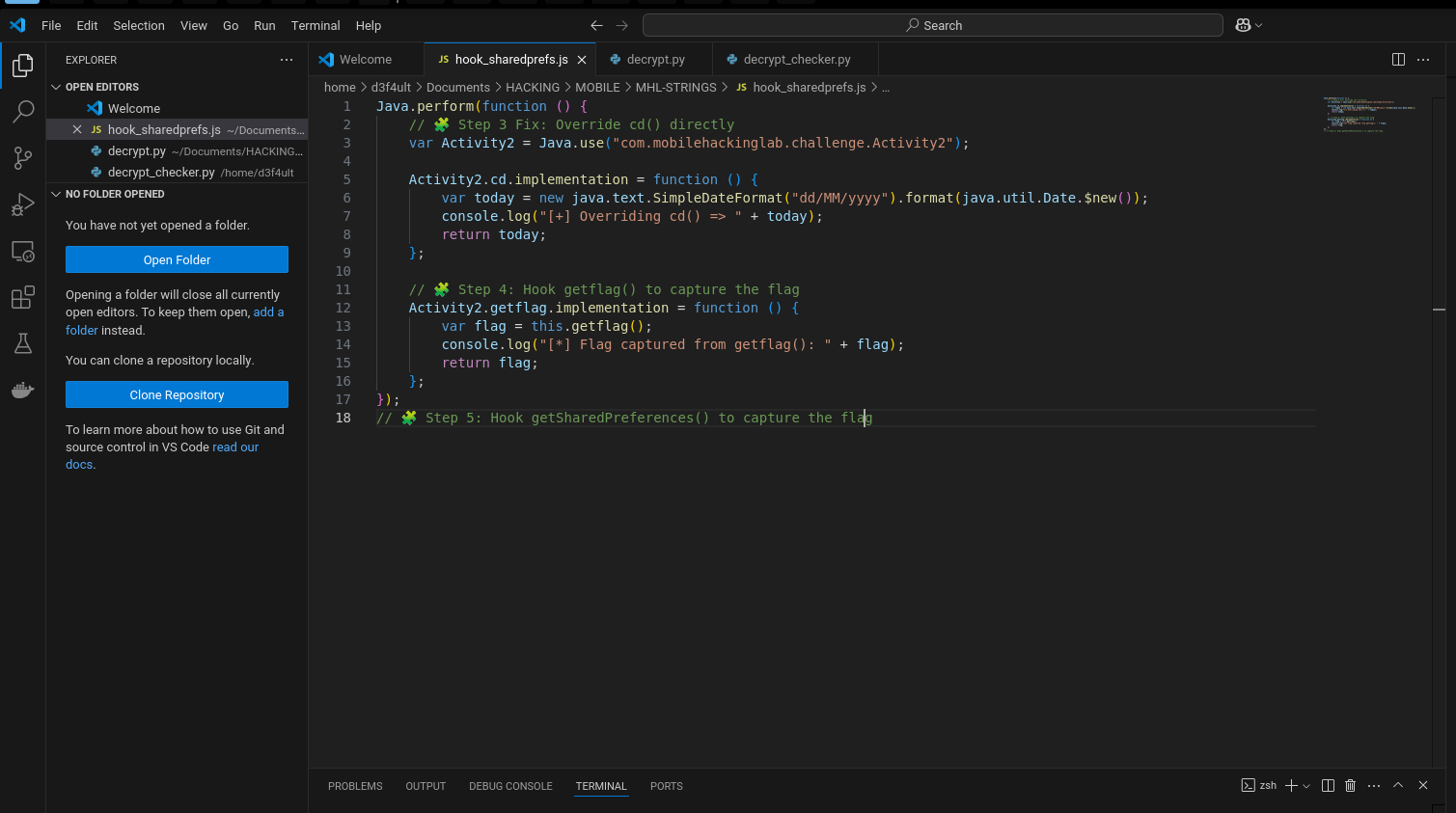

   • Bypassed SharedPreferences check and triggered the intent using a Frida script:


   Ran this command:

   adb shell am start -a android.intent.action.VIEW -n com.mobilehackinglab.challenge/.Activity2 -d "mhl://labs/bWhsX3NlY3JldF8xMzM3"

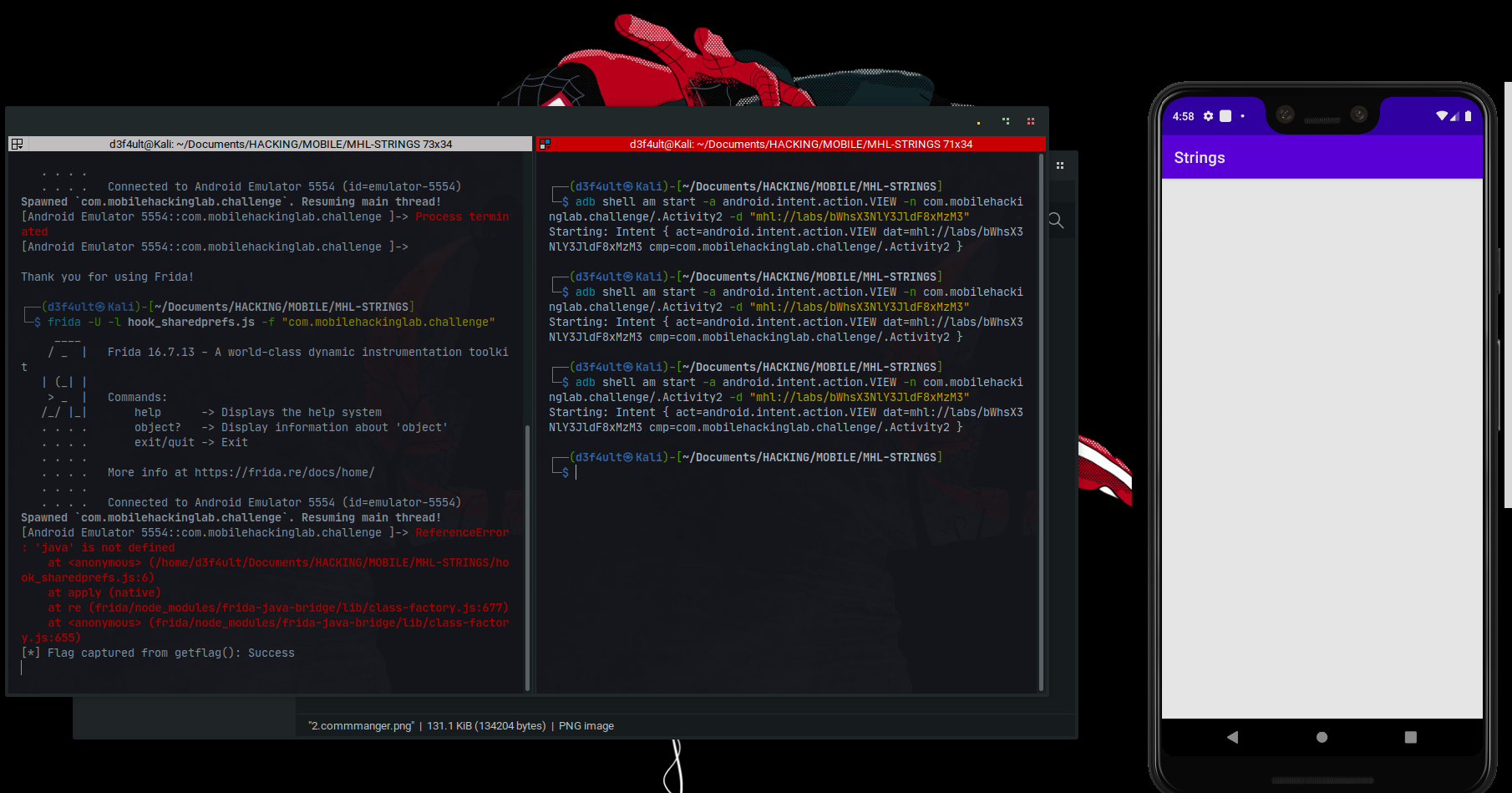

   Triggered the exported activity, got success, but no flag:



Troubleshooting & Final Solution

1. Errors, Errors, Errors!

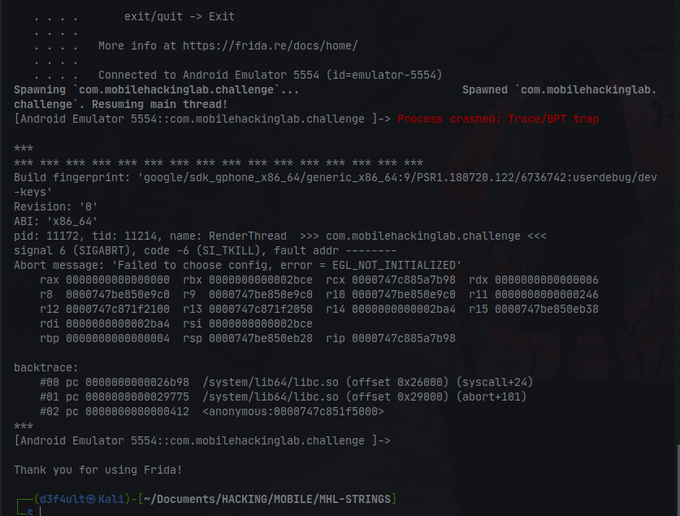

   • Tried to hook a Frida script to dump memory, but got many errors:

   • Probably because I was using an emulator.
   • Also tried Ghidra for reverse engineering, but was unsuccessful.
2. After Research:

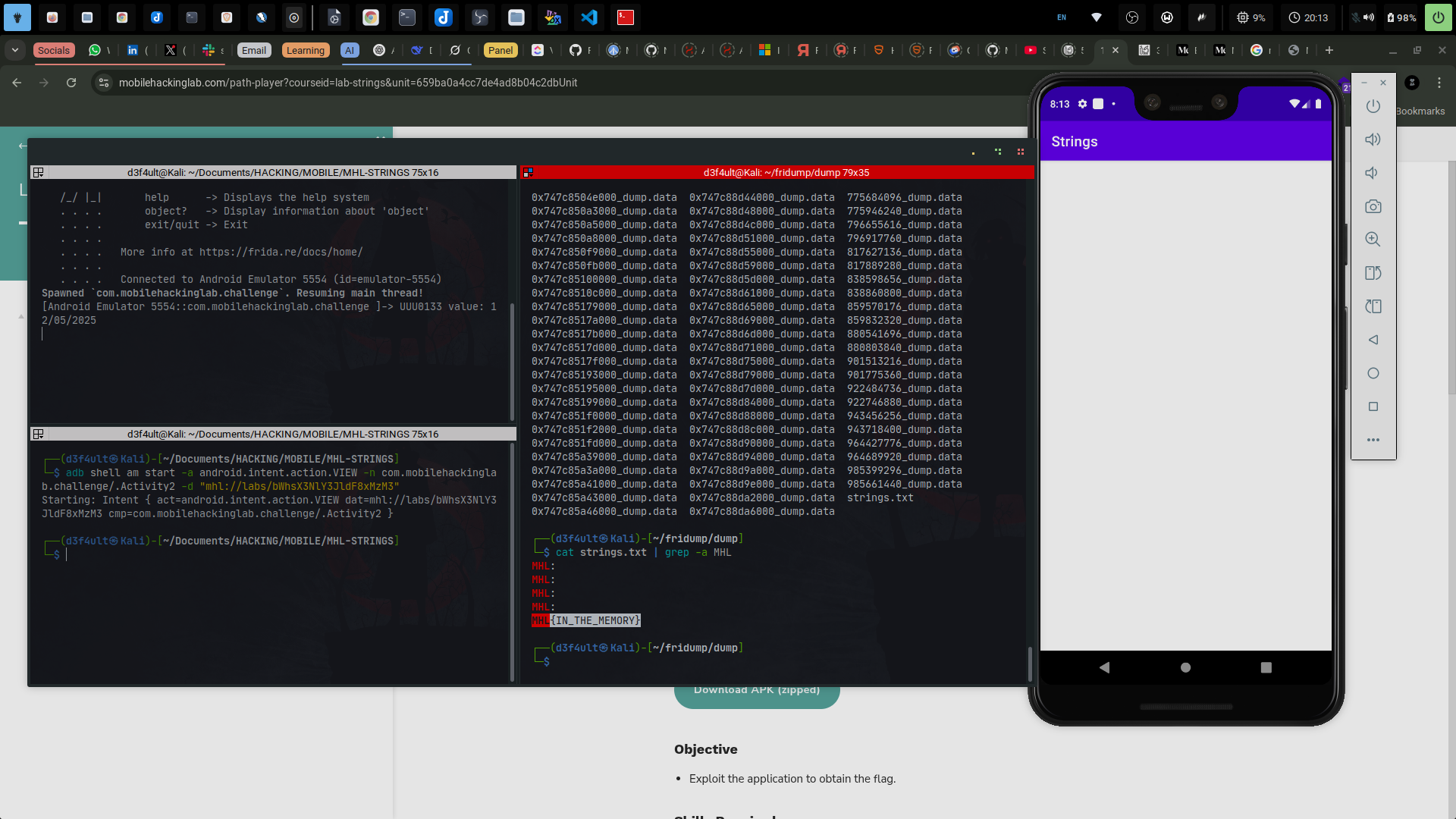

   • Used Fridump to dump memory, and it worked!


   python3 fridump.py -U -s Strings
