Mobile Hacking Labs: IOT Connect Challenge

Mobile IoT Broadcast Receiver

Exploit a security flaw in the IOT Connect app's broadcast receiver to gain unauthorized control over connected devices.

Challenge

Exploit a security flaw in the IOT Connect app's broadcast receiver, allowing unauthorized users to activate the master switch and control all connected devices. The goal is to send a broadcast so that only authenticated users can trigger the master switch.

Step 1: Reconnaissance

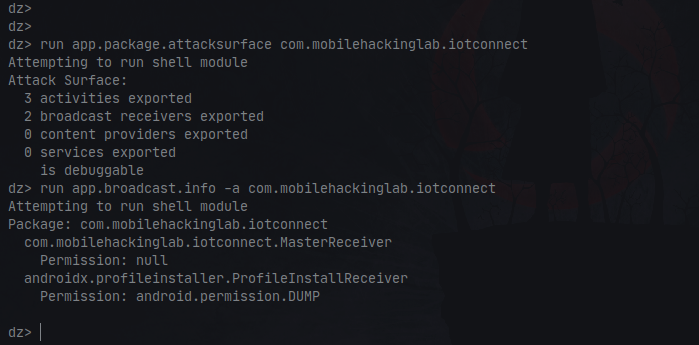

Installed the app, started it, and used Drozer to map out the attack surface.

Step 2: Static Analysis

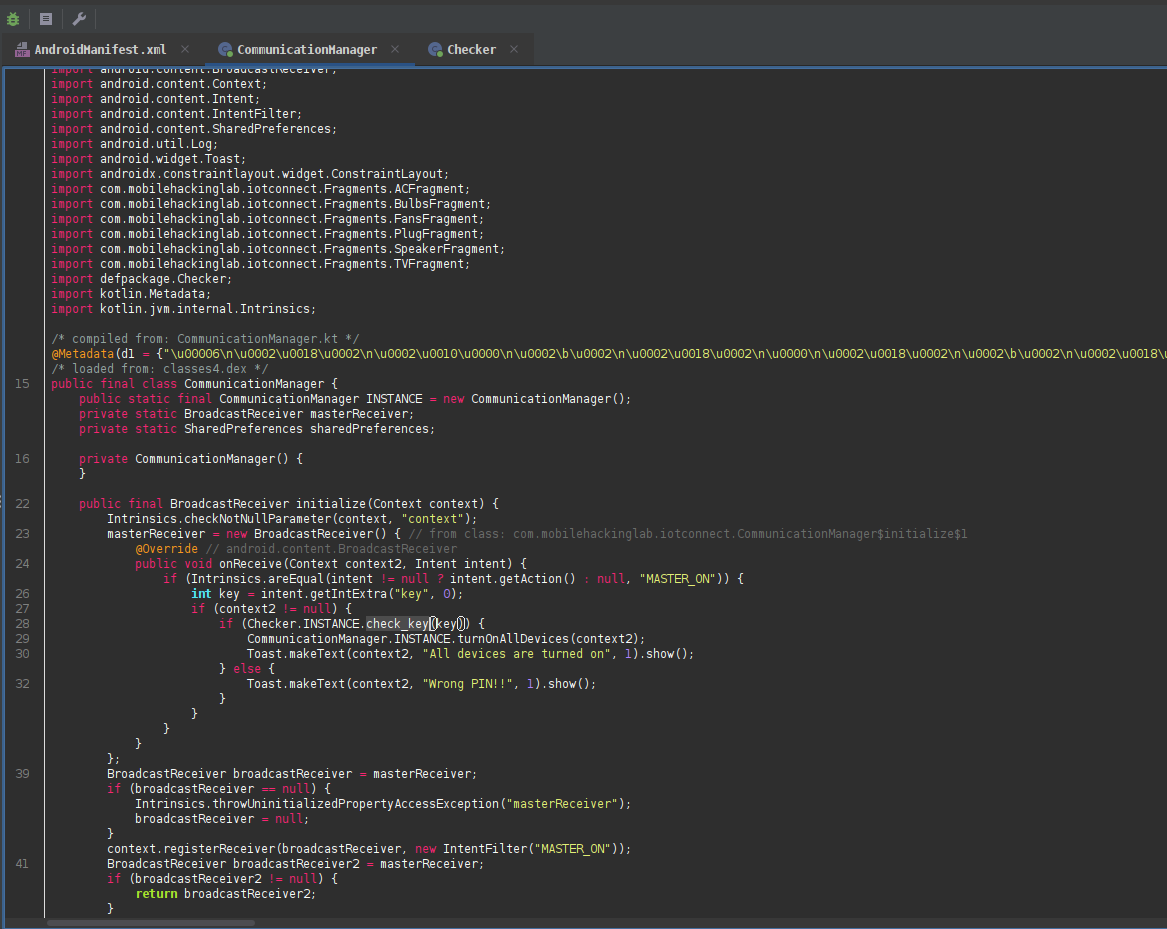

Searched for Master Receiver in JADX-GUI after decompiling the app, and found the communication manager class.
Found an action to trigger the master receiver (MASTER_ON) that also required a key.

Step 3: Attempted Exploitation

Ran this command in Drozer:

run app.broadcast.send --action MASTER_ON

This returned an error: Wrong PIN!!

Step 4: Key Discovery

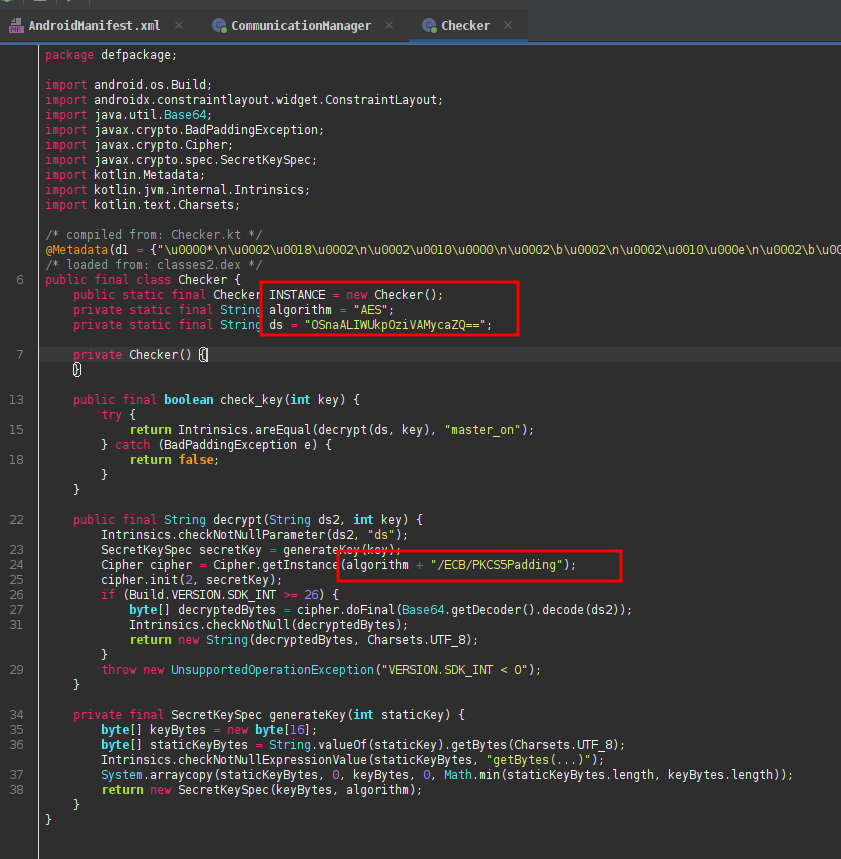

Checked further in the code and found the checker class.
- Uses AES/ECB/PKCS5Padding for decryption.
- The key is an int, converted to a UTF-8 byte array and padded/truncated to 16 bytes.
- If the decryption result equals master_on, check_key() returns true.

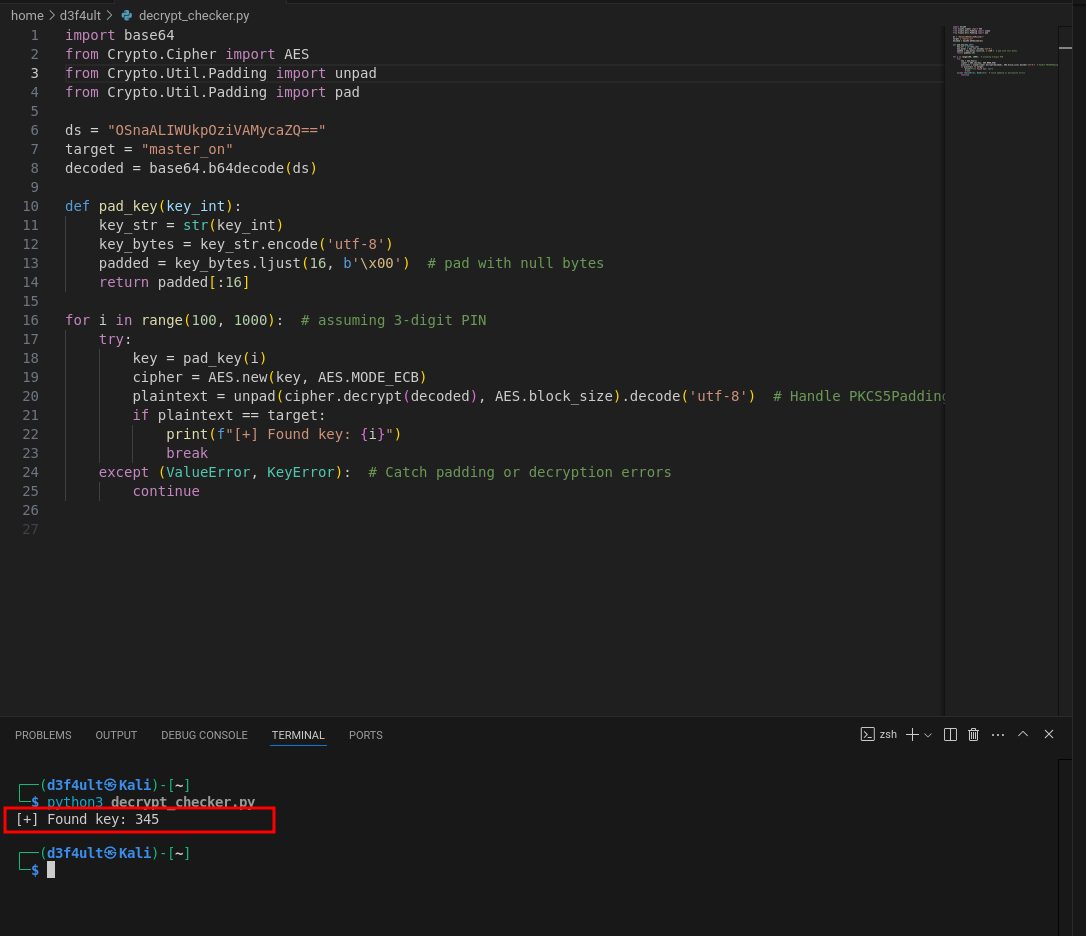

Wrote a script to brute-force the password (the app uses a three-digit password):
The script revealed the key: 345

Step 5: Exploitation

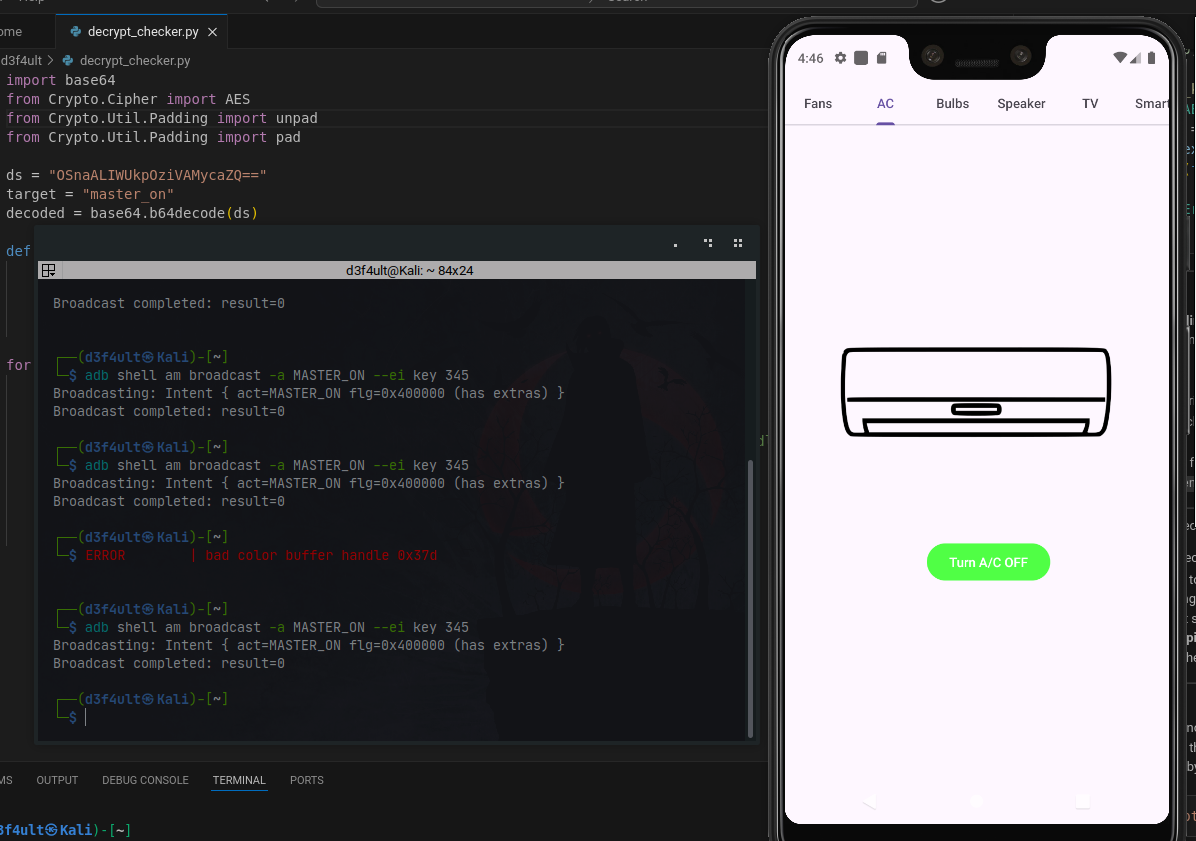

Ran the following ADB command with the --ei flag to pass the key:

adb shell am broadcast -a MASTER_ON --ei key 345

🎉 Challenge Completed!

Successfully triggered the master switch, controlling all connected devices.

Flag Retrieved!
